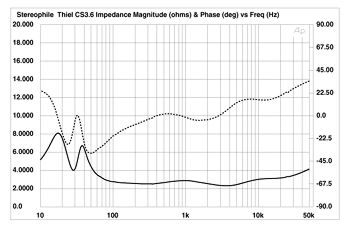

The CS3.6's impedance magnitude and phase plot (fig.1) reveals a very low impedance value. The loudspeaker is under 3 ohms through most of the range, dropping to a minimum of 2.3 ohms at 3.6kHz (the cursor position). The low impedance value explains the CS3.6's need for the iron-fisted Mark Levinson No.23.5 to provide control in the bass; the CS3.6 would appear to be current-hungry. There is, however, a consistency to the impedance curve that makes the CS3.6 look much like a resistor to the amplifier, rather than an impedance that varies greatly with frequency. The phase angle—represented by the dashed line—is quite benign. The passive radiator tuning can be seen as the valley centered at 29Hz.
